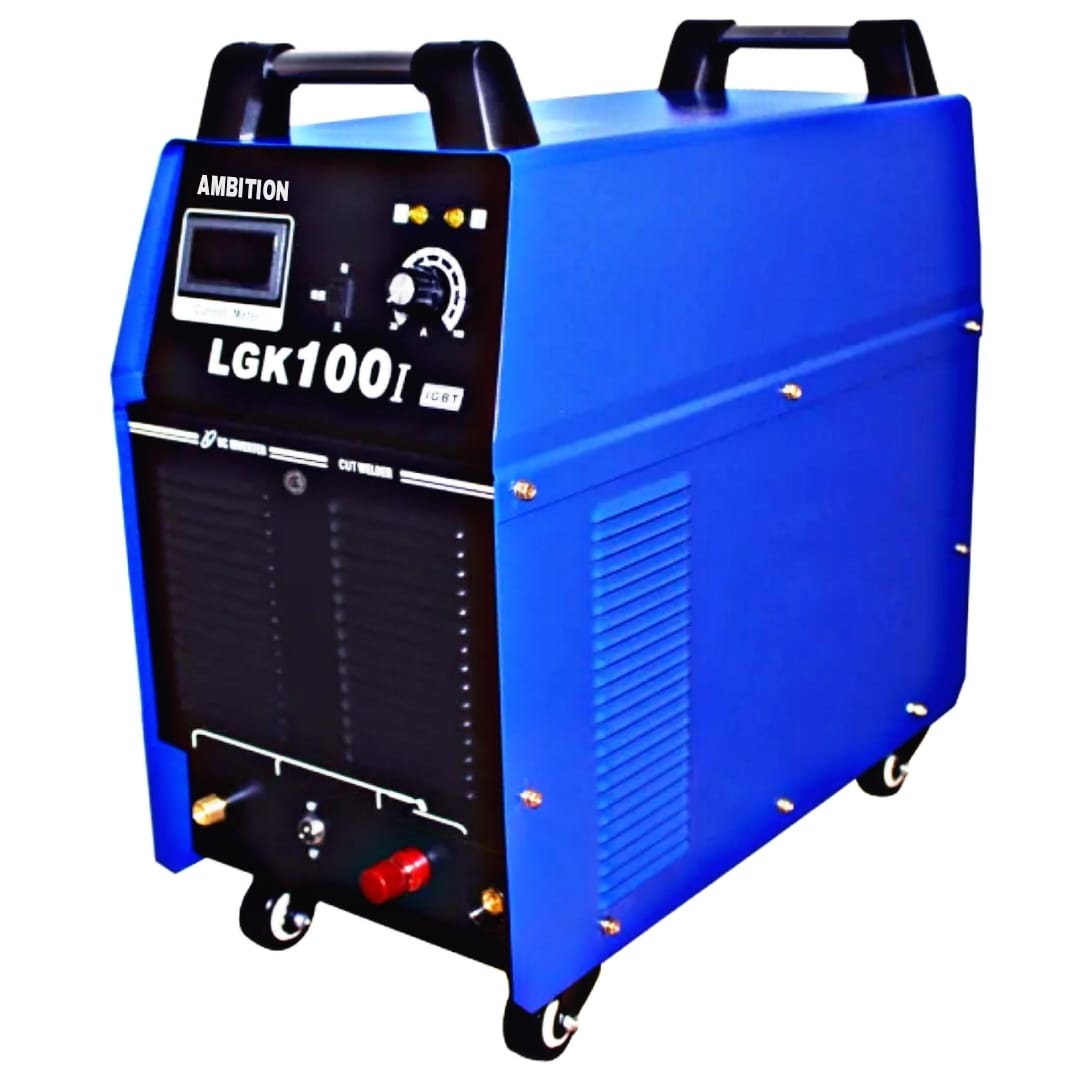

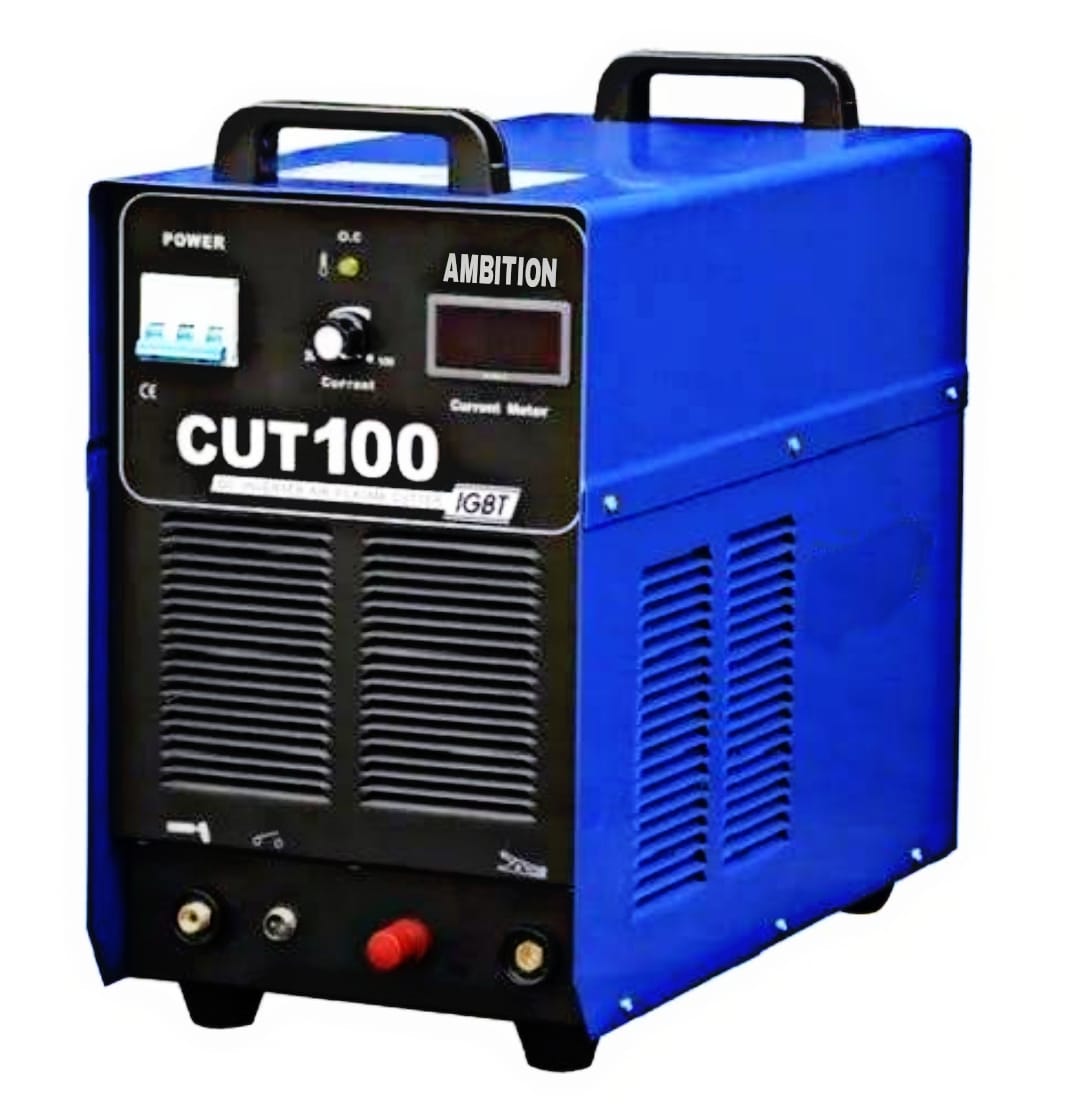

  • Portable Small Size Cutting Machine
  • Thick metal plate can be cut easily and quickly
  • Stale output small cutting tension and defornation
  • Simply operation ,smooth cutting edge and high cutting precision
  • Mosfet power switch and advanced inverter technology design ,60%high duty cycle
Features

➢ Heavy-duty cycle for industrial use
➢ 2-3times faster than the Oxyacetylene cutting speed with significant benefits of less deformation, low costs, and high efficiency.
➢ Powerful cutting capacity, narrow cutting seam, and clean cutting edge
➢ Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit.
➢ Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
➢ 7.Smart cooling & overheating protection
➢ 2T/4T self-locking function
Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/03/JPC-100.pdf
PARAMETER UNIT Model JPC-100
Input Voltage V AC 415 + 15%
Frequency Hz 50/60
Phase Three
Max.power draw KVA 15
Current range A 20-100
Operating voltage V 280
Rated duty cycle % 60
Efficiency % 85
Degree of protection class IP21S
Insulation grade H(155°C)
Effective Cutting Thickness mm 25
Max cuttng Thickness mm 35
Weight gas clooled Kg 29
Dimension L*W*H mm 562x 303x 467
