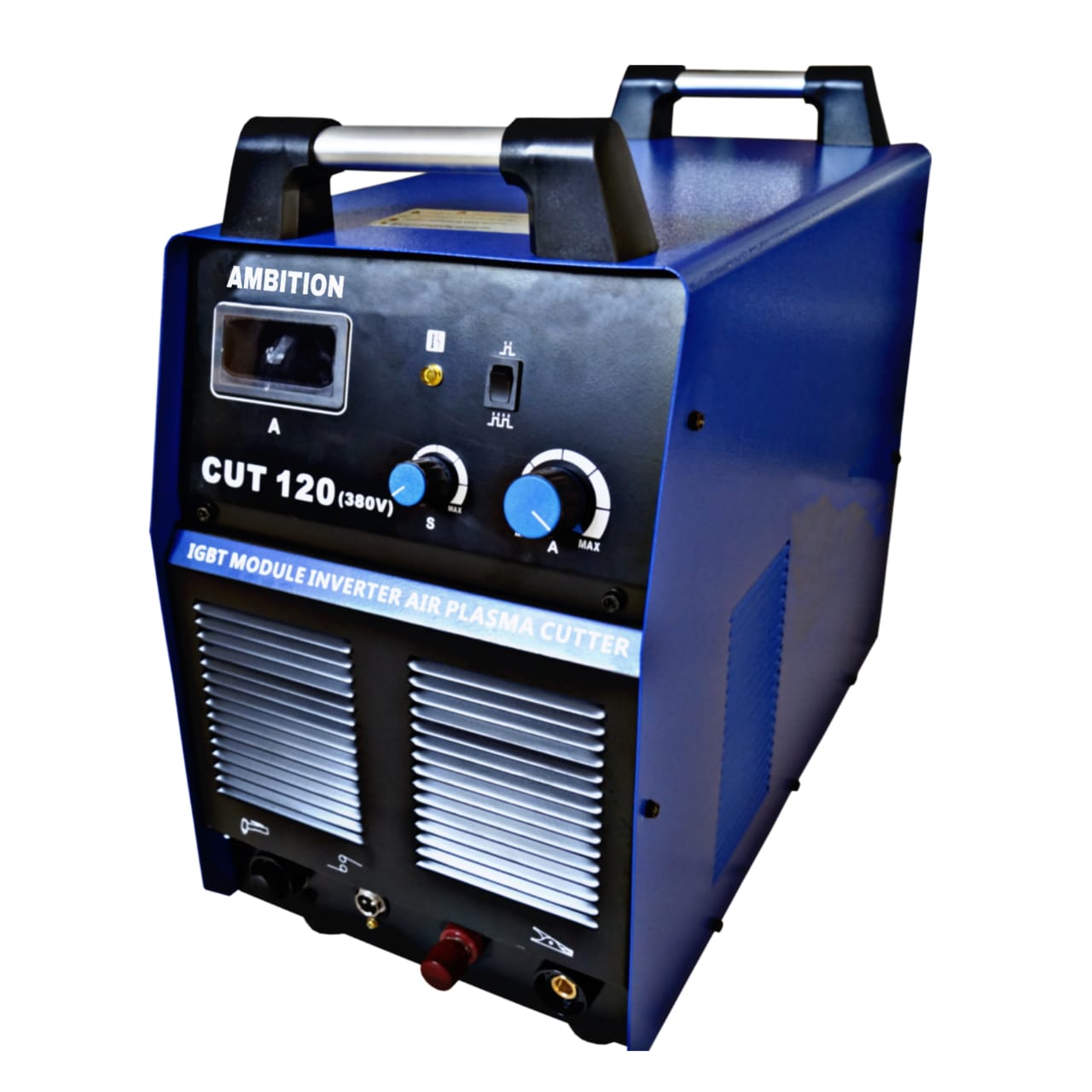

  • Portable Small Size Cutting Machine
  • Thick metal plate can be cut easily and quickly
  • Stale output small cutting tension and defornation
  • Simply operation ,smooth cutting edge and high cutting precision
  • Mosfet power switch and advanced inverter technology design ,60%high duty cycle
Features

➢ standby arc- a non-contact start of the cut, which allows to use this device when cutting unprepared metal
➢ Plasma JPC-120 is the most efficient and cost effective compared to the flame cutting process. The speed of the cutting process is about 1.8 times faster than oxy-fuel cutting.

PARAMETER UNIT Model JPC-120
Input Voltage V AC 415 + 15%
Frequency Hz 50/60
Phase Three
Max.power draw KVA 20
Current range A 20-120
Operating voltage V 280
Rated duty cycle % 60
Efficiency % 85
Degree of protection class IP21S
Insulation grade H(155°C)
Effective Cutting Thickness mm 30
Max cuttng Thickness mm 40
Weight gas clooled Kg 30
Dimension L*W*H mm 580x 320x 495
