| Features | ➢ standby arc- a non-contact start of the cut, which allows to use this device when cutting unprepared metal |
|---|---|
| Catalog | https://www.ambitionweld.com/wp-content/uploads/2023/03/JPC-160-C.pdf |

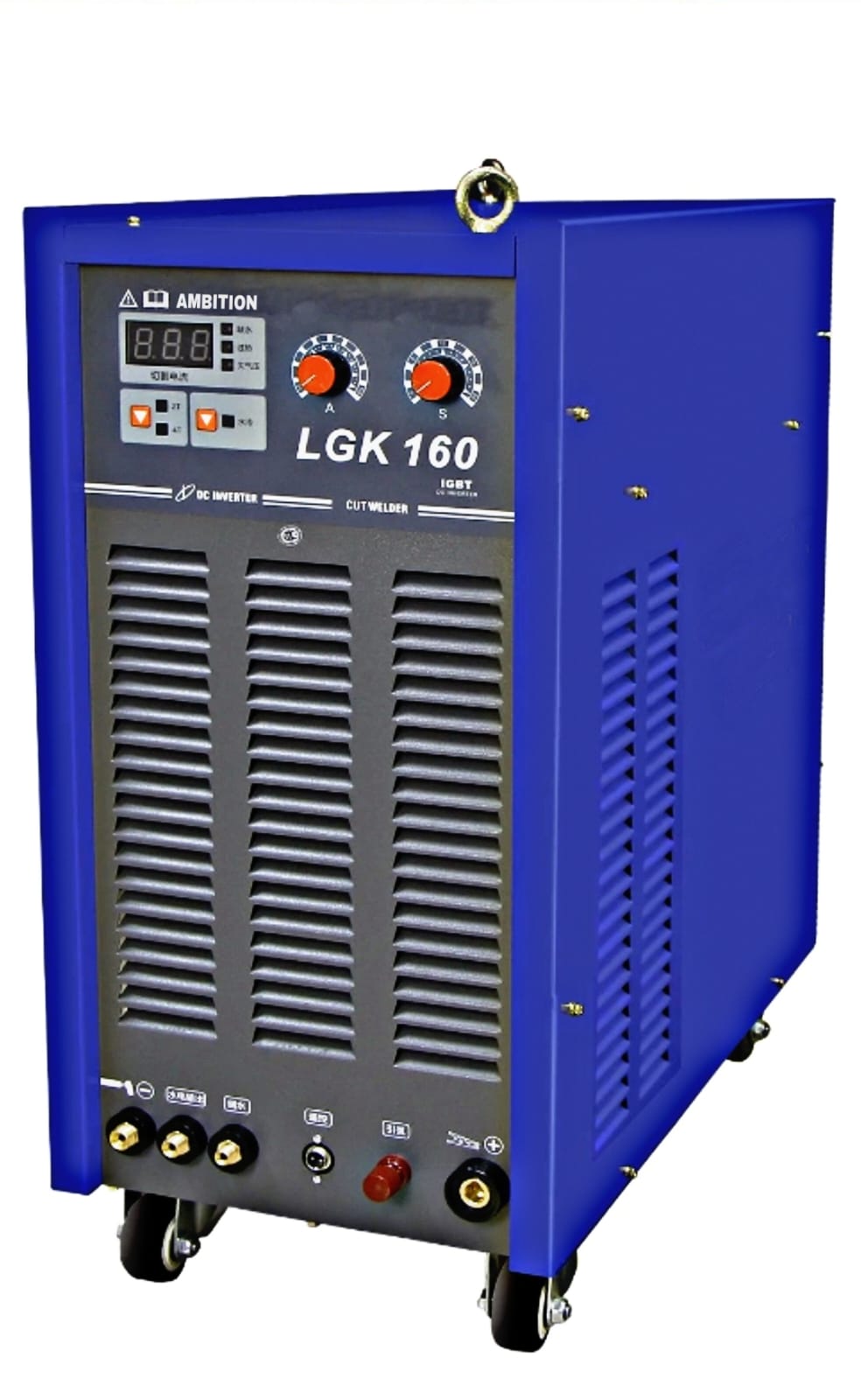

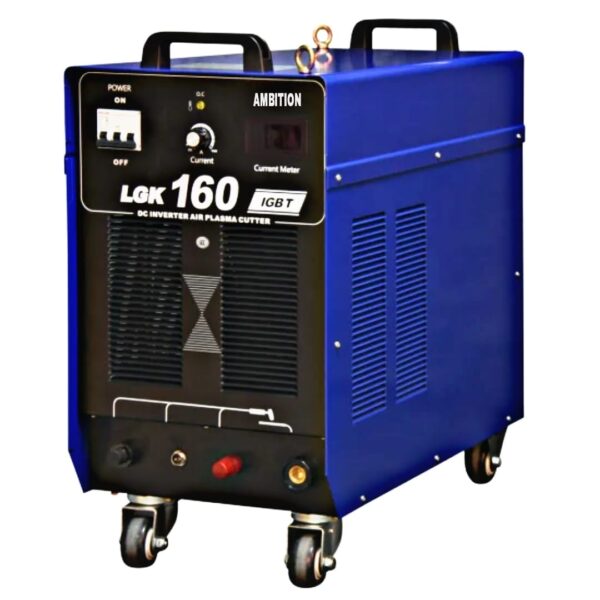

- Portable Small Size Cutting Machine
- Thick metal plate can be cut easily and quickly
- Stale output small cutting tension and defornation
- Simply operation ,smooth cutting edge and high cutting precision
- Mosfet power switch and advanced inverter technology design ,60%high duty cycle
| PARAMETER | UNIT | Model JPC-160 |
| Input Voltage | V | AC 415 + 15% |
| Frequency | Hz | 50/60 |
| Phase | Three | |
| Max.power draw | KVA | 24 |
| Current range | A | 20-160 |
| Operating voltage | V | 280 |
| Rated duty cycle | % | 60 |
| Efficiency | % | 85 |
| Degree of protection | class | IP21S |
| Insulation grade | H(155°C) | |
| Effective Cutting Thickness | mm | 35 |
| Max cuttng Thickness | mm | 45 |
| Weight gas clooled | Kg | 47 |
| Dimension L*W*H | mm | 580x 320x 495 |
