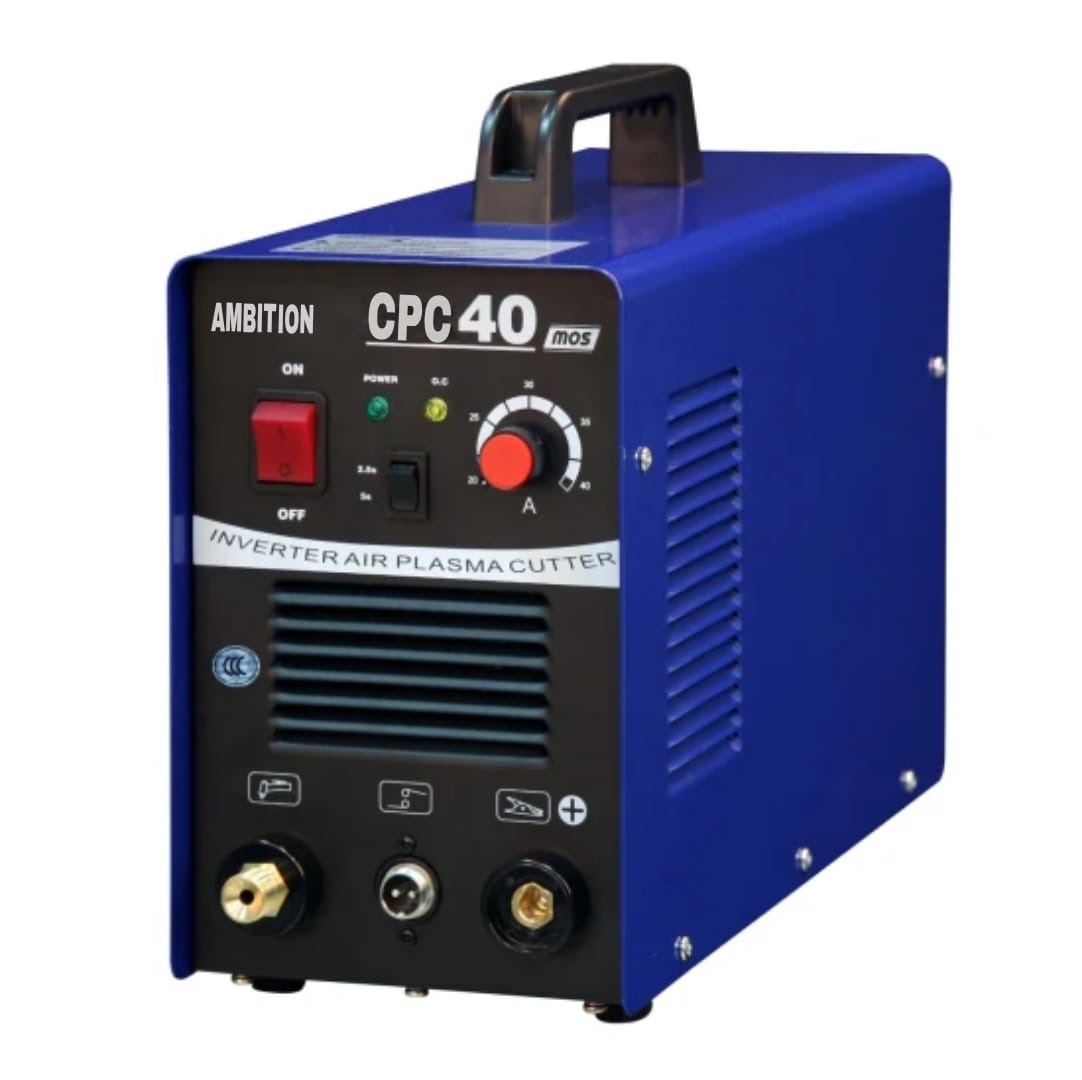

- Portable Small Size Cutting Machine
- Thick metal plate can be cut easily and quickly
- Stale output small cutting tension and defornation
- Simply operation ,smooth cutting edge and high cutting precision
- Mosfet power switch and advanced inverter technology design ,60%high duty cycle
| PARAMETER | UNIT | MODEL – JPC 40 |
| Input Voltage | V | AC 220 + 15% |
| Frequency | Hz | 50/60 |
| Phase | Single | |
| Max.power draw | KVA | 4.8 |
| Current range | A | 10-40 |
| Operating voltage | V | 230 |
| Rated duty cycle | % | 60 |
| Efficiency | % | 85 |
| Degree of protection | class | IP21S |
| Insulation grade | H(155°C) | |
| Effective Cutting Thickness | mm | 6 |
| Max cuttng Thickness | mm | 10 |
| Weight gas clooled | Kg | 9 |
| Dimension L*W*H | mm | 395x 253x 301 |
Related products
-
Read more➢ More precise cut, thinner kerf, less slag to clean up
➢ Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit.
➢ Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
➢ Reliable, Powerful cutting Machine for professional industrial usage
➢ Anti-fluctuation of power supply
➢ Simple operation, smooth precise cutting
