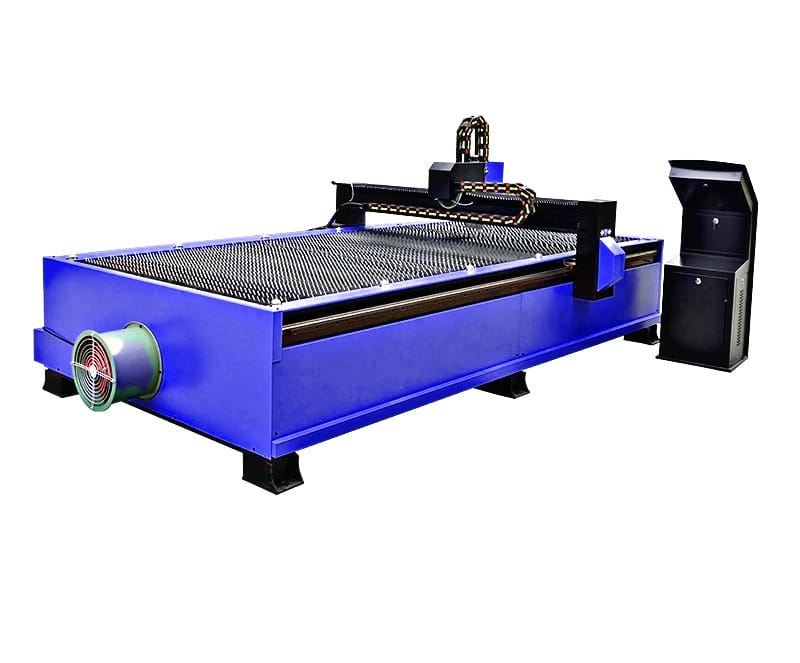

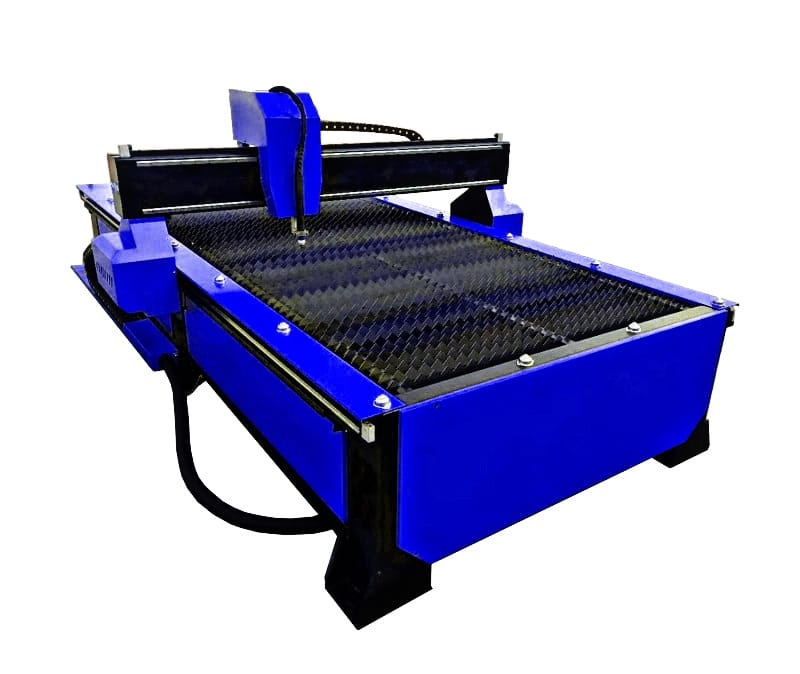

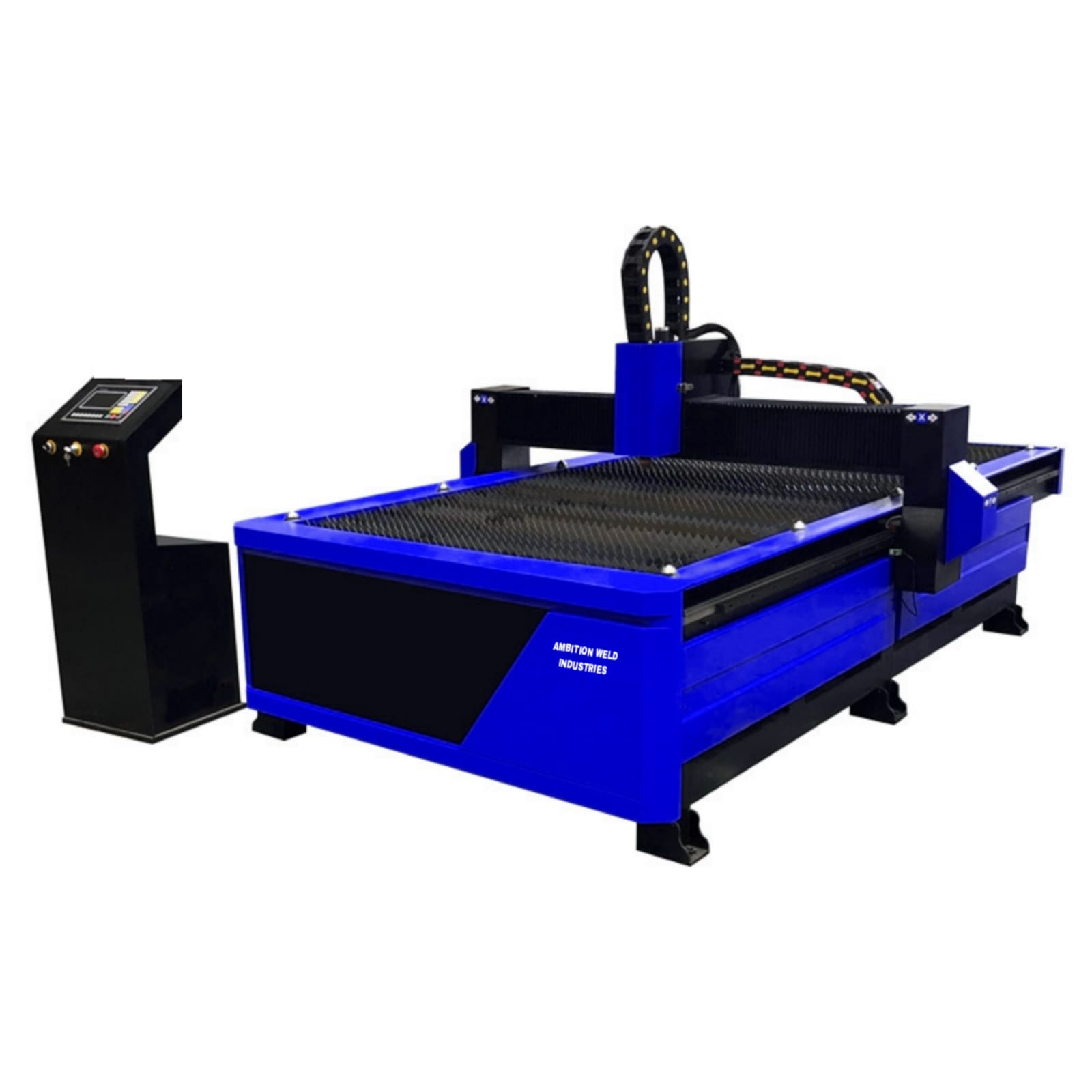

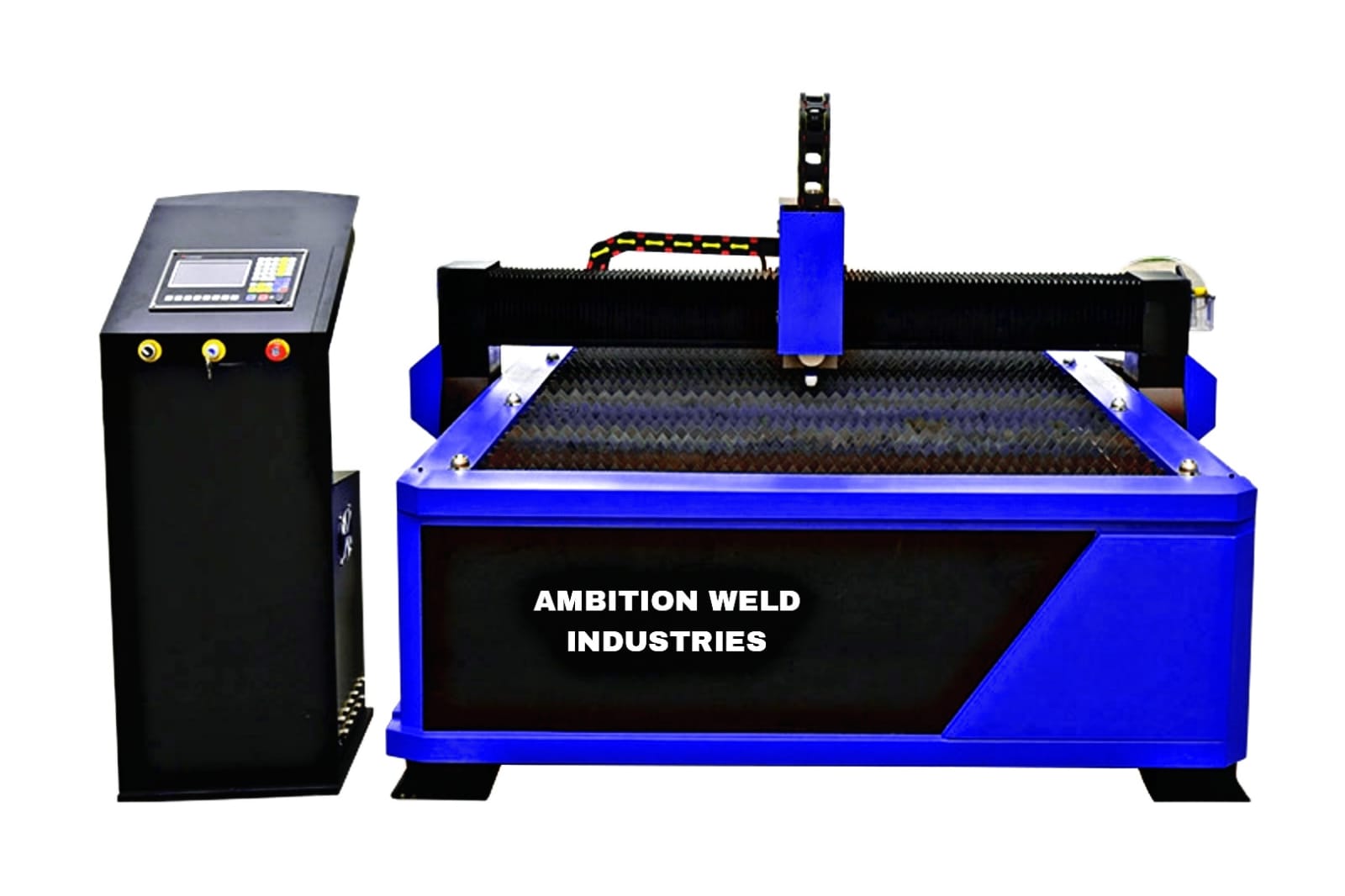

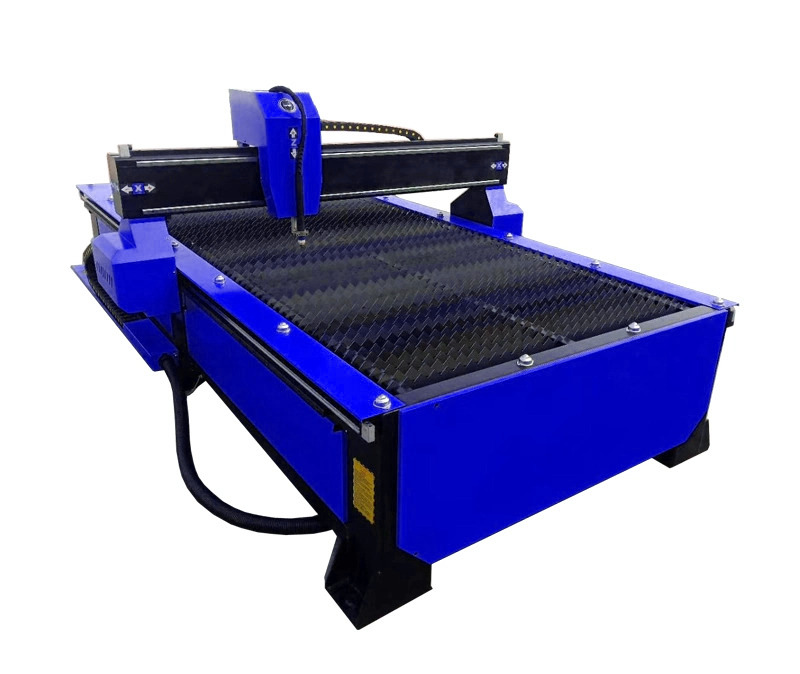

JBT16-1530 CNC plasma cutting machine is a classic model launched by Ambition weld industries. It has been recognized and loved by consumers for many years. The JBT16-1530 is equipped with precision motor and American chip. It has better performance and can achieve precision on sheet metal. Cutting, no burrs on the edges, fast cutting speed, is a big cutting tool in the field of sheet metal processing.
JBT16-1530 plasma cutting machine is stable and It is equipped with plasma and flame cutting methods. It is suitable for medium and heavy plate cutting, with high cutting precision, excellent cutting performance and high cost performance

Features

➢ Beams adopt welding structure with high precision and small inertia. The machine body is processed with high precision to prevent deformation. The support for workpiece is cut by laser machine.
➢ Transmission structure is high precision rack and special reducer, and adopt HIWIN linear rail to ensure high precision and high speed.
➢ The drive system adopts USA chip control and high precision motors, providing AC power with big torque to ensure running smoothly under high speed.
➢ The control system is 7 "screen, with English and Chinese language. The machine adopts high precision arc voltage automatic torch height controller.
➢ Optional function: Plasma /Plasma and Flame
➢ Optional configuration: Stepper motor, servo motor, HIWIN linear rail, SBR round rail
➢ Machine size: 1300*2500, 1500*3000mm, 1500*4000mm,1500*6000mm(customized)

Applicable industry:
Sheet metal, advertising, wrought iron, automobile shell, medium and thin sheet blanking, air conditioning, air duct, yacht production and other industries
Manufacturing industries such as boilers, automobile chassis, flange blanking, agricultural machinery manufacturing, construction machinery manufacturing, trailer components, and automobile girders.
MODEL JBT16-1530
BASIC
INFORMATION		 Cutting method Plasma Flame(Optional)
Machine size 2100*3500*1650mm
Cutting material All metal sheet Mild/High Carbon steel
Cutting size 1500*3000mm
Cutting thickness According to Plasma source 6-200mm
Lifting travel ≤150mm
Max travel speed 15000mm/min
Running accuracy ≤0.05mm
CONFIGURATION
LIST		 CNC controller Startshaphon (Optional: FangLing)
Electric parts France Schneider
Auto Height control HYD XPTHC-16 Lifter
Motor drive mode Stepper motor(Optional: Panasonic servo motor)
Drive system Dual drive
Reducer Gear box(Optional: Planetary reducer)
Drive method Rack and pinion drive
Gas pressure 0.4-0.7Mpa for normal plasma power
X, Y axis Round rail(Optional: Linear rail)
EXTERNAL SUPPLY Power 220V/ 380V(Optional)
Cutting gas Compressed air Oxygen + Ethyne(Propane)
Gas pressure 0.4-0.7MPa Oxygen:0.5MPa
Fuel gas:0.1MPa
SOFTWARE Graphic import method USB
Programming software AutoCAD(all dxf,dwg,CAM,NC files)
Nesting software FastCAM
ACCESSORIES Torch One set of Plasma torch One set of Flame torch
Consumables 10 sets of nozzles 3 Flame nozzles
PACKING INFORMATION Dimension 2200*3600*1700mm
Weight 800Kg
