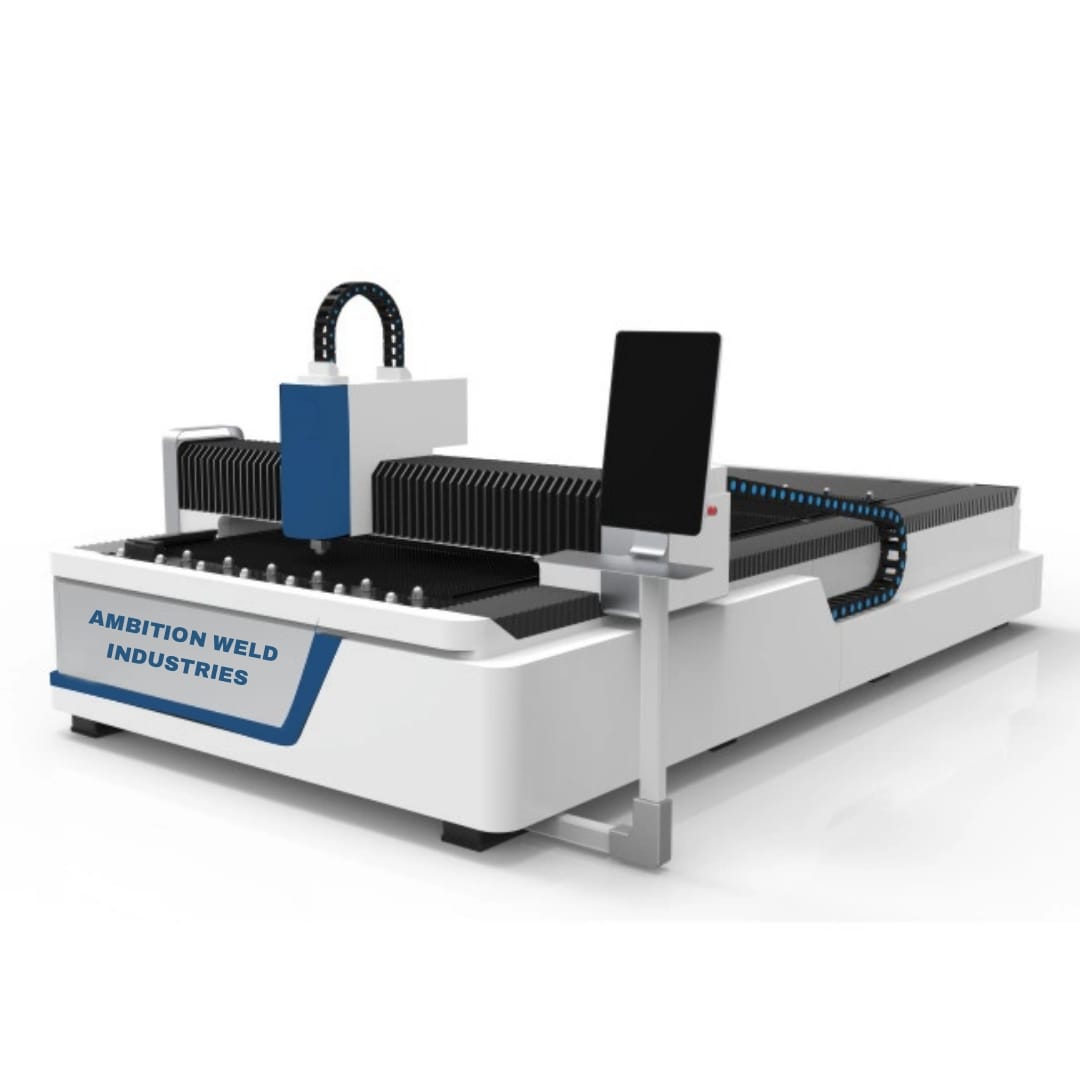

Fiber laser cutting machine with bilateral vacuum system and gantry double-drive moving structure, linear guide and screw drive, operated by AC servo motor. One-time processing range up to 3m*1.5m. It has a sophisticated and dependable design, with greater integration, more precise control, and stable operation. It’s commonly utilized in carbon steel, stainless steel, aluminum alloys, and copper alloys, among other things.

Features

Heavy Bed

Integrated design ideas, heavy-duty carbon machine bed, stress relief annealing treatment, gantry milling machining center

Aluminum Beam
Using heavy-duty steel mold pressure casting, the aluminum water is popular and the density is uniform, and the strength of the protective casting surface is high

Laser Cutting Head

laser cutting head does not need to be operated manually, and it is easy to focus automatically. Wide application, high precision and long life

Precision and Speed
The fiber laser cutting machine is equipped with Taiwan yyc rack, Japan Xinbao flange output reducer, and Taiwan Shangyin guide rail. The service life can reach more than 10 years

Configuration
Equipped with dual high-powered servo motors of which max. rotating speed 3750r/min.
Core transmission parts like speed reducer and gears are imported from Germany.
High-precision racks, guide rails and ball screws are produced by world-famous brands.
Autofocus Laser Head, Active Collision Prevention
It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently;
Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.
Feature/Model JFLC-1530 JFLC-2040 JFLC-2060
Working Area 1500mm*3000mm 2000*4000 mm 2000*6000 mm
X/ Y/ Z Axis 1525mm/3025mm/150mm 2025mm/4025mm/150mm 2025mm/6025mm/150mm
Structure Gantry Type Gantry Type Gantry Type
Table Surface Blade Type Blade Type Blade Type
Laser Power Source Raycus Raycus Raycus
Laser cutting Head Raytools BT 240S Raytools BT 240S Raytools BT 240S
Cooling System Water Cooling Water Cooling Water Cooling
Reducer Shimpo Shimpo Shimpo
Software Cypcut Cypcut Cypcut
Rack & Pinion YYC YYC YYC
Motor Fuji Servo motor Fuji Servo motor Fuji Servo motor
Laser Power 1Kw, 1.5Kw , 2 Kw , 3 Kw , 4 Kw ,6 Kw
Positioning Accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m
Repositioning Accuracy ±0.03mm ±0.03mm ±0.03mm
Max. Moving Speed 140m/min 140m/min 140m/min
Max. Acc. Speed 1.2G 1.2G 1.2G
Max. Loading Weight 700kg 1400kg 2000kg
Overall Dimensions (L*W*H) 4900×2250×1700mm 6015×3300×1700mm
