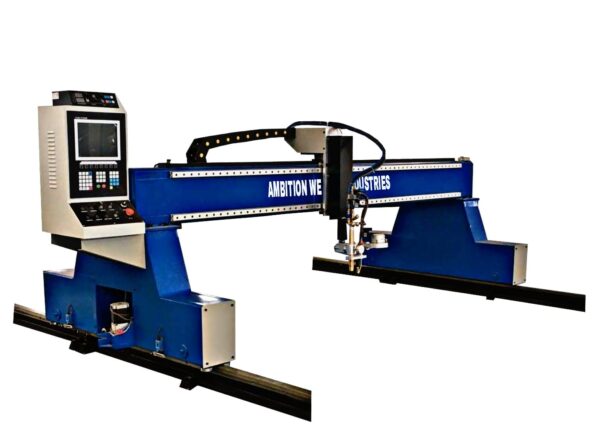

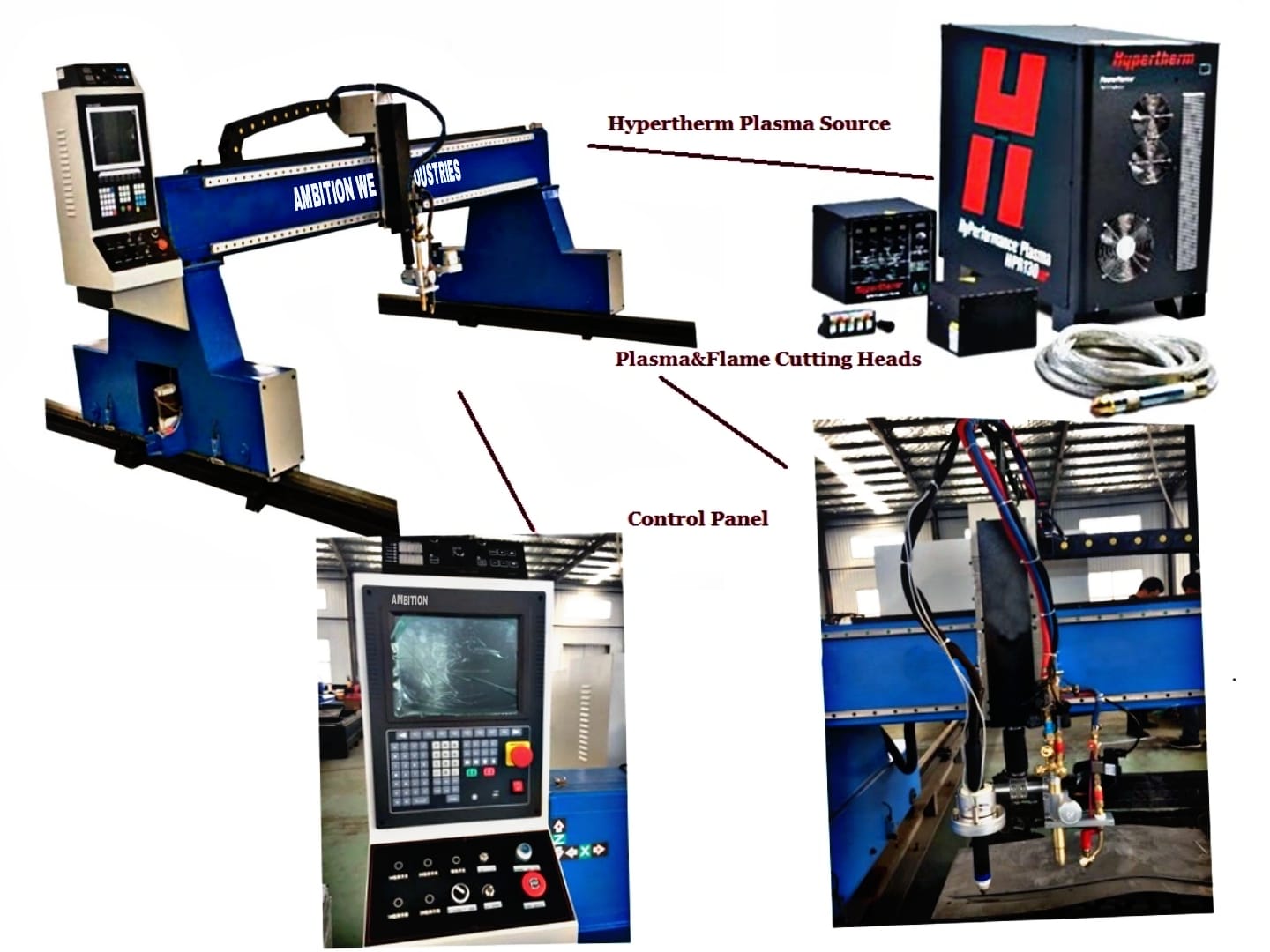

JGT20-4080 series plasma cutting machine adopts ground rail installation, bilateral drive, and effective cutting area. It is suitable for medium and heavy plate cutting. The bed and the material frame are separated to prevent the heavy plate from affecting the accuracy of the bed. The cutting length can be extended as needed, and the cutting effective width can be up to 3.2 meters, which can complete the cutting of a whole large plate at a time. Save on loading and unloading time and improve efficiency.

Features

➢ The frame adopts square tube welding and stress relief annealing. It has good rigidity, high precision, small inertia and effective deformation prevention.
➢ The transmission structure is a precision rack and pinion. The horizontal direction adopts high-precision double-axis guide rail, and the longitudinal direction adopts 24 kg train track, which runs smoothly,Durable.

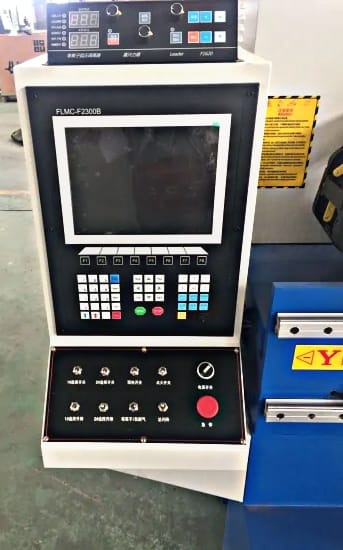

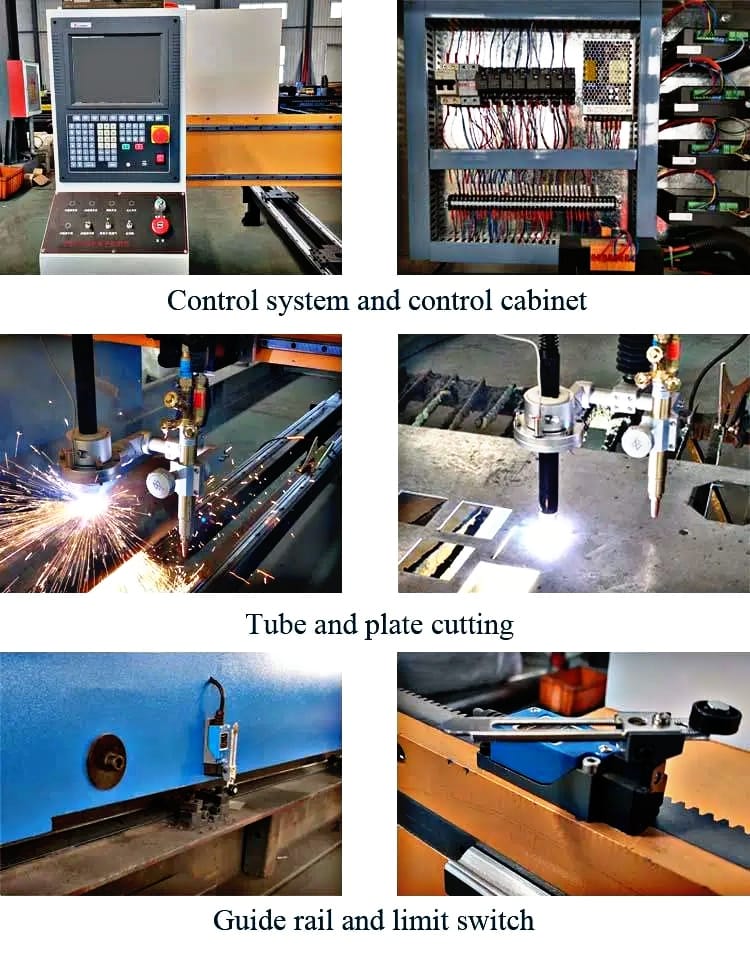

➢ The Machine adopts 10-inch CNC system and high-precision arc-pressure automatic height controller.
➢ It is equipped with Japan Matsushita servo motor or stepping motor, high-precision reducer with high precision and stable operation.
➢ It adopts high-stability plasma power supply, which is light and energy-saving, with good cutting effect and fast speed.
➢ The machine adopts French Schneider electric devices and versatility of high flexibility and easy initial cable, to ensure the accuracy and stability of operation.
➢ optional features: either flame or plasma
➢ optional configuration: either stepper motor or servo motor
➢ Optional models: A.40120: 4*12m (6m, 8m, 12m,) B.30120: 3*12m (6m, 8m, 12m)
MODEL JGT20-4080
BASIC
INFORMATION		 Cutting method Plasma Flame
Machine size 4650*8000mm
Cutting material All metal sheet Mild/High Carbon steel
Cutting size 2400*6000mm
Cutting thickness According to Plasma source 6-200mm
Lifting travel ≤170mm
Max travel speed 8000mm/min
Running accuracy ≤0.05mm
CONFIGURATION
LIST		 CNC controller FangLing F2300B
Electric parts France Schneider
Auto Height control Fangling FL1620
(optional: HYD 200DC-PT
)		 THC – Lift body
Motor drive mode Stepper motor(optional: Panasonic servo motor)
Drive system Dual drive
Reducer Planetary reducer
Drive method Rack and pinion drive
Gas pressure 0.4-0.7Mpa for normal plasma power
X, Y axis High Quality Rack & Pinion and 24kg linear rail
EXTERNAL SUPPLY Power 220V/ 380V(optional)
Cutting gas Compressed air Oxygen + Ethyne(Propane)
Gas pressure 0.4-0.7MPa Oxygen:0.5MPa
Fuel gas:0.1MPa
SOFTWARE Graphic import method USB
Programming software AutoCAD(all dxf,dwg,CAM,NC files)
Nesting software FastCAM
ACCESSORIES Torch One set of Plasma torch One set of Flame torch
Consumables Nozzle and electrode Flame nozzles
PACKING INFORMATION Dimension
Weight
