MIG welding , is an abbreviation for “Metal Inert Gas” which is more
formally known as “Gas Metal Arc Welding” or “GMAW”. The term MIG comes from
the original shielding gasses used that were the inert, or Nobel, gasses. Today
the gases used vary, so the name has officially been changed to “Gas Metal Arc
Welding”. MIG welding is the slang term that is commonly accepted. It is also
known as “Wire Wheel Welding”. This process uses a wire feed to feed solid
filler wire to the weld joint.

MIG welding is an excellent choice for all types of metals, and with the
benefits of a single pass there is little need for any additional shielding
gas. As the weld shrinks, the gasses escape from the joint, leaving it fully
protected from oxidation and moisture. Using just one gas instead of both argon
and helium also saves you money in gas costs and limits the risk of leaks when
transporting or storing your equipment as there are no other gases needed to
store compared to arc welders and they reduce corrosion with no other gases
required.

Features

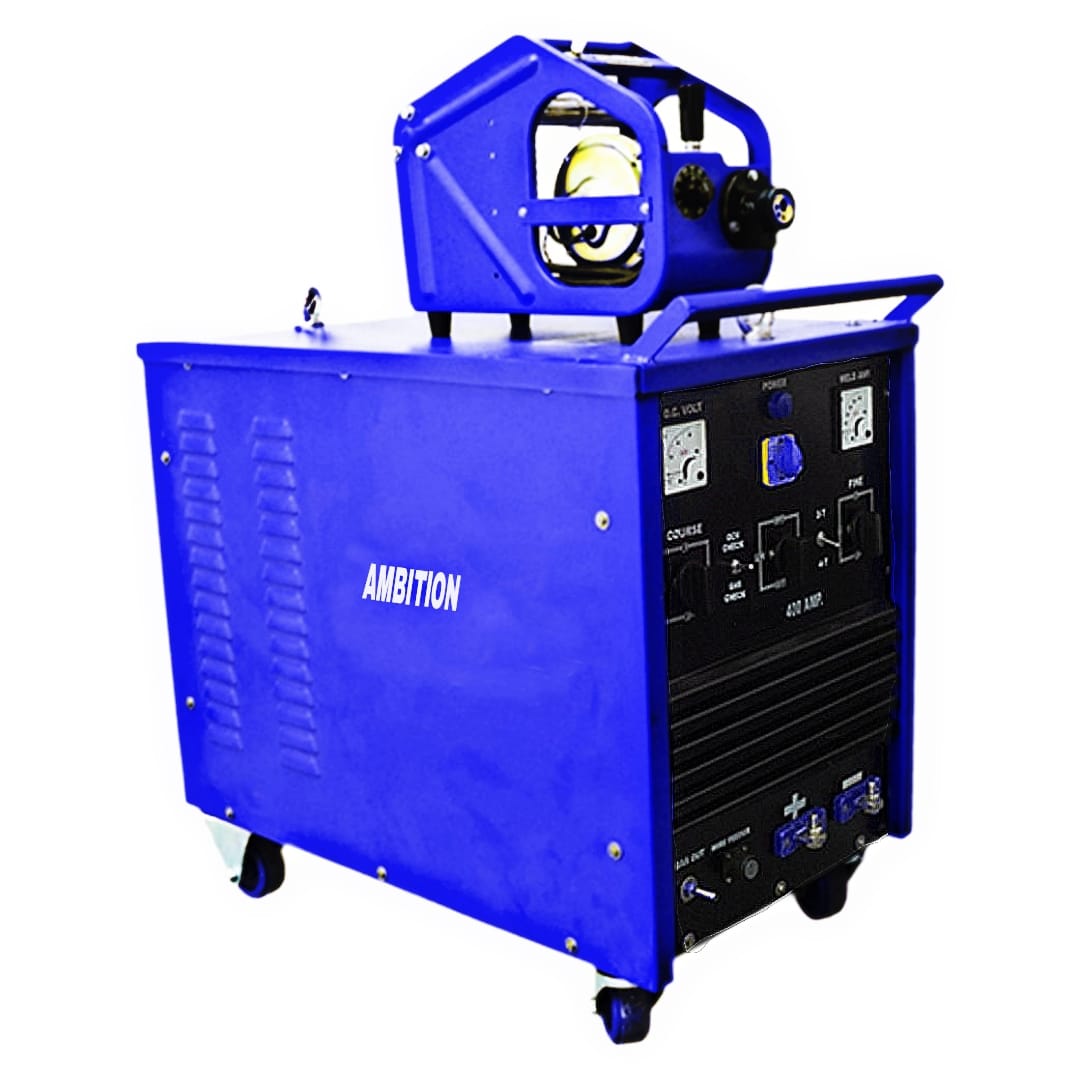

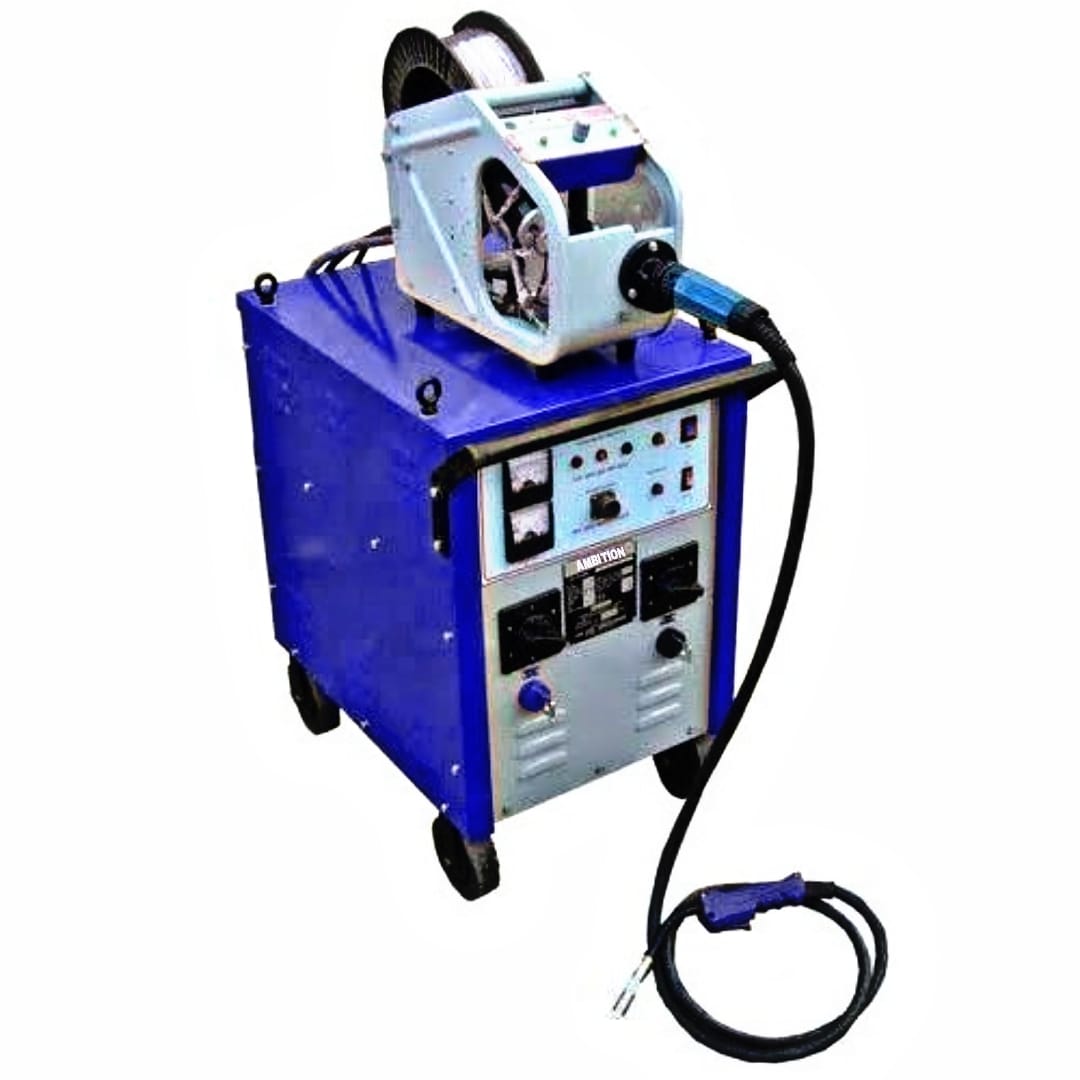

➢ Semi-autamatic MIG/MAG welder with conventional mode.
➢ Coarse / Fine controls for proper selection of voltage
➢ Gas Check Function The Flow 0f Welding Gas Can Be Safely
➢ Used for Solid-cored wire and flux-cored wire welding;
➢ Separate lightweight wire-feeder gives better reach
➢ Welding current and voltage can be adjusted individually;
➢ Especially suitable for welding the low carbon steel, alloy steel, aluminum alloy and stainless steel with argon gas.
Main Parameters Units Main Models

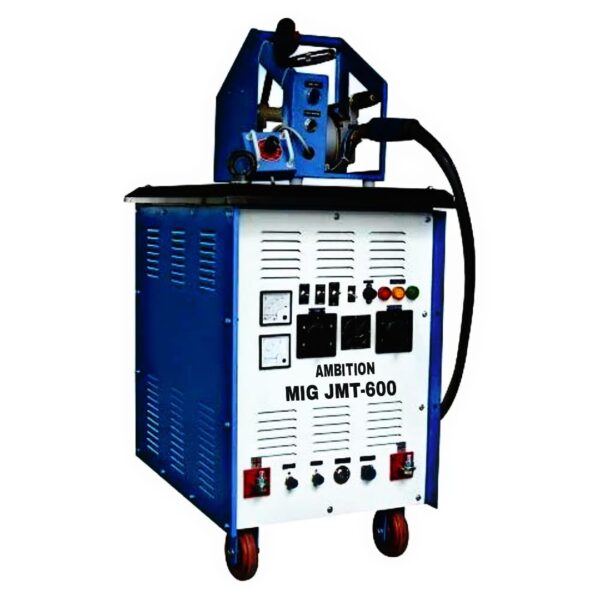

JMT-300 JMT-400 JMT-500 JMT-600
Input Voltage V 380-440VAC 380-440 VAC 380-440 VAC 380-440 VAC
Frequency Hz 50/60 50/60 50/60 50/60
Phase Single/Three Three Three Three
Rated Input Capacity KVA 13 18 31.9 45
Open Circuit Voltage V 40 50 65 73
Output Current A 60-300 60-400 60-500 80-630
Output Voltage V 17-30 17-42 17-54 18-60
Control Method Thyristorised Thyristorised Thyristorised Thyristorised
Rated Duty Cycle % 60 60 60 60
Welding Wire
Diameter		 mm 0.8 0.8-1.2 0.8-1.6 0.8-1.6
Protection Grade IP21 IP21 IP21 IP21
Insulation class H H H H
Cooling Fan Forced Air Forced Air Forced Air Forced Air
Power Source
Net Weight		 Kg 110 130 190 230
Wire feeder weight Kg 9 14 16 18
Dimension
(L*W*H)		 mm 680*410*753 710*436*815 660*530*980
