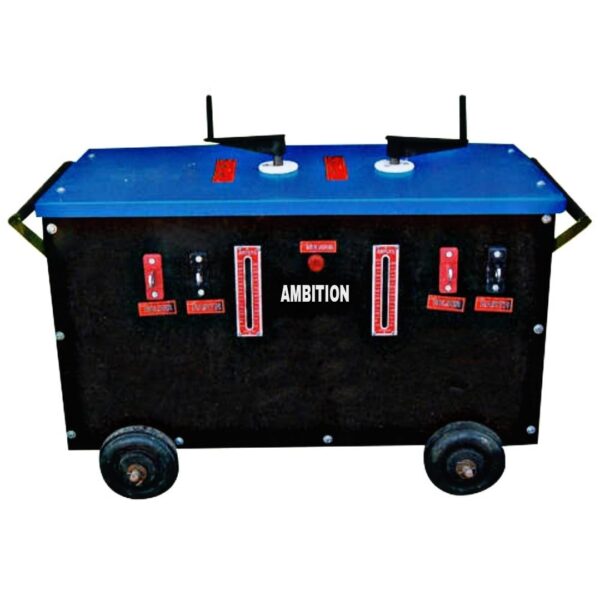

Arc welding is the process of joining metal – steel in this case – using electricity.
arc welding is well-priced and affordable, and the process often requires less equipment in the work place , only welding electrode.
It’s less sensitive to paint, corrosion, and dirt at the welding point, saving time on pre-welding clean-up
Process of arc welding machine is easy to change rods for different metals

Features

➢ Operating two weldings in a same machine.
➢ Machine is mounted on a four wheeled trolley type stand for easy moving anywhere.
➢ Welding Transformers available for Single Phase and Two Phase connection as required
➢ Available in both Air Cooled as well as Oil Cooled versions
➢ Stepless Variation in Current helps in adjusting suitable current for wide range of jobs
➢ Automatiic temperature protection system, fan cooling, high efficiency and safe
➢ welding in a dirty & dusty environmental Possible.
➢ Suitable for indoor as well as outdoor work
➢ widely used in construction & Manufacturing company.
Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/04/JRG-400-D-H.pdf
Particular stud type regulator type JRG-450DH JRG-600DH 3 phase
Model JPN-350DH JPN-400DH JRG-350DH JRG-400DH 220/440 220/440 JRG-350E DH JRG-400E DH JRG-450E DH JRG-600E DH
Input Supply V 220/440 220/440 220/440 220/440 1-2 1-2 380/440 380/440 380/440 380/440
Phase 1-2 1-2 1-2 1-2 50 50 3 3 3 3
Frequency (HZS) Hz 50 50 50 50 60-450 60-600 50 50 50 50
Welding Current Range A 60-350 60-400 60-350 60-400 80 80 60-350 60-400 60-450 60-600
Max. Open Circuit Volta.(O.C.V) V 60 70 60 70 450 600 60 70 80 80
Max. Continuous Hand Welding Current at 60% Duty Cycle 350 400 350 400 60 60 350 400 450 600
Duty Cycle % 60 60 60 60 Stepless Stepless 60 60 60 60
current control pin type pin type Stepless Stepless double holder double holder Stepless Stepless Stepless Stepless
Operating Type Double Holder Double Holder double holder double holder Fan Cool Fan Cool double holder double holder double holder double holder
cooling Natural Air Natural Air Fan Cool Fan Cool F F Fan Cool Fan Cool Fan Cool Fan Cool
insulation class H H F F 2.5 2.5 F F F F
Welding Electrode Size Min. mm 2.5 2.5 2.5 2.5 4 6 2.5 2.5 2.5 2.5
Welding Electrode Size Max. mm 3.15 moderate 3.15 3.15 4 3.15 4 4 6
