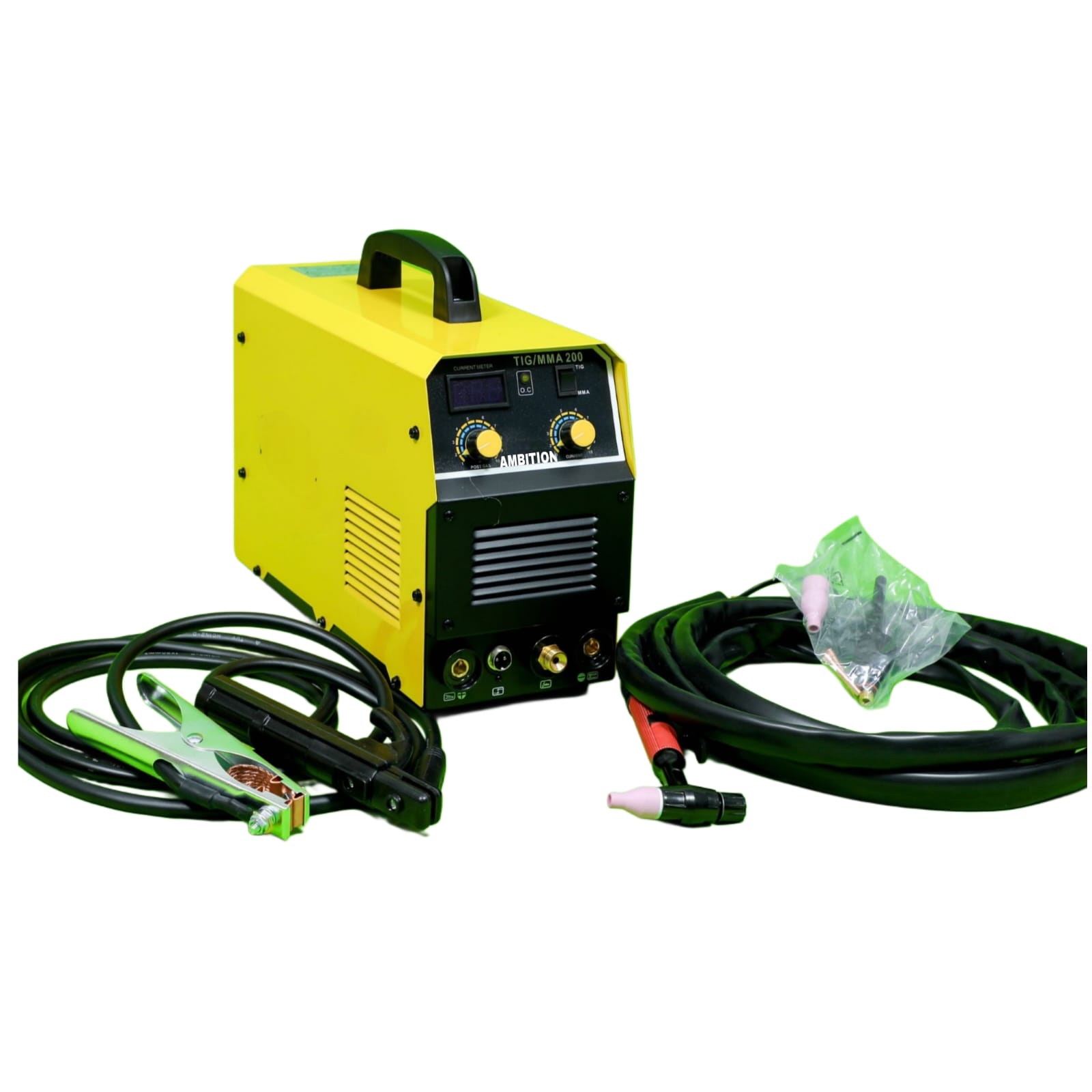

The INVERTE TIG is designed and manufactured with the latest digital IGBT technology. This machine has superior arc performance

Features

➢ Best Choice for thin material.
➢ Provide precise , high Quality weld.
➢ Light and Handy: Design with portability and outdoor use in mind,handle (or shoulder strap) on top allows you to carry the unit to everywhere.They are ideal machines suitable for small scale construction work, upholster industry,high altitude,field operation,repairing and the home handyman
➢ Smooth arc and stable welding performance, ideal for welding mild steel, stainless steel, copper , tanium
➢ High frequency DC TIG ignition
➢ Perfect self-protective function in cases of over-voltage,low-voltage,over-current, over-heat;safe and reliable
Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/04/JTG-200.pdf
ITEM UNIT JTG-200
Input Power Voltage V AC230V±15%
Input Power Frequency Hz 50/60
Phase Single
Input Current A 27.6
Rated Input Capacity KVA 6.3
Output Current Range(TIG) A 10-200
Output Current Range(MMA) A 10-180
Pre-flow Time S 0.1-10
Post-flow Time S 0-10
Down Slope S 0-15
Balance 15-85
Arc Starting HF
No-load Voltage V 56
Rated Duty Cycle % 60
Efficiency % 85
DC Frequency Hz 20-200
Power Factor 0.93
Protection Grade IP23
Insulation Class H
Dimensions mm 387*192*315
Weight Kg 6.3
