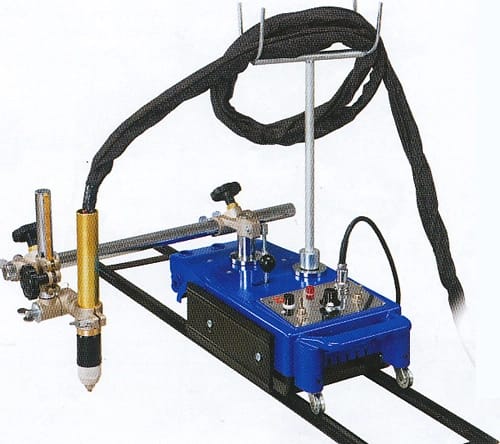

JPUG-NM cuts various types of steel including channel, curved plate and angled steel members. Made of aluminum alloy, the JPUG-NM is lightweight and easy to use & control the cutting Modes.

Features

➢ A sturdy portable machine for straight line & circle cutting & slow profile by hand guiding.
➢ Machine runs on an pore track supplied 1.8 mtr lengths.
"Aluminum rail; makes accurate
straight cuts; extendable track
allows cutting of longer parts"
➢ Low cutting production cost.
➢ It is designed for heavy duty jobs.
JPUG-NM series cutting tips are recommended for best performance.
➢ It is operated by 1/12 H.P single phase motor.
➢ Magnetic effect in the roller shaft of gear box.
➢ Movement of gas cutting nozzle is directly linked with magnetic roller shaft which results in fine cutting of metal.
"Proper
rail selection ensures the highest precision Cutting."
Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/04/UNI-NM-20.pdf
PARAMETER UNIT UNI-NM-20
Input voltage Volt 220 V + 15%
Frequency Hz 50/60
Phase Single
cutting Thickness mm 6- 100
Nozzle Type NM
Wheel Nos. Four
Inlet Gas Hose connection ¼” BSP RH & LH
Horizontal movement of torch mm 80
Vertical movement of torch mm 60
Speed of cutting material mm/min 3500
Straight cut mtr depends on track 1.8 mtr
Circle cut mm 200-2000
Bevel cut mm 45 degree , 125 mm thick
Weight Kg 16
Dimensions (L*W*H) mm 470x230x240mm
