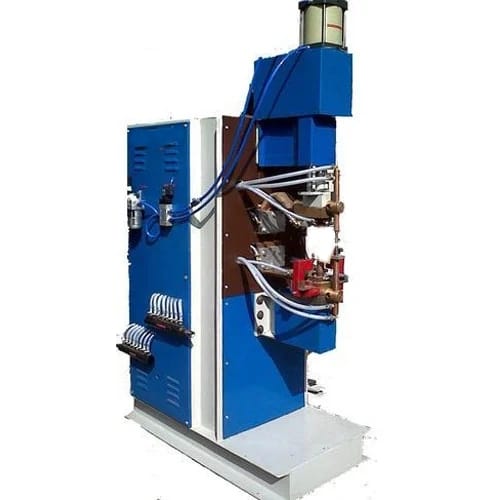

Spot welding basically joins two pieces of metal using the heat from an electric current. The two pieces of metal are pressed together with electrodes on either side. The electrodes are connected via a small spot. The current must be applied for the correct amount of time in order to get a strong join. The exact timing will depend on the types and thickness of metals being joined.

Catalog

➢ Fast and simple welding operation saves time
➢ Machines are design to weld MS & SS. material for kitchen Basket , jaali , cooler , trolley , wire mesh & Cross wire application
➢ Machine is suitable for all types of Nuts like M3, M4, M5, M6, M8, M10.
➢ Pressure Head Assembly with low Inertia Ram
➢ Pneumatic Cylinder controls the welding pressure, job height very preciously.
➢ Various jobs have different settings and it can be control by the pannel
➢ Foot operated switch operation
Model: UNIT JSP-15PR JSP-20PR JSP-35PR JSP-50PR JSP-75PR JSP-100PR
Rating @ 50% Duty Cycle KVA 15 20 30 50 75 100
Input Supply V 220/415 380 / 440 380 / 440 380 / 440 380 / 440 380 / 440
Frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60
Controlling System Type Electronic Timer Electronic Timer Electronic Timer Electronic Timer Electronic Timer Electronic Timer
Phase Rating 2 Lines of 3 Phase 2 Lines of 3 Phase 2 Lines of 3 Phase 2 Lines of 3 Phase 2 Lines of 3 Phase 2 Lines of 3 Phase
Throat Depth mm 460 460 460 460 460 460
Nominal Throat Clearance mm 220 220 220 350 350 350
Brass rod Length (standard ) inch 18 18 18 18 18 18
Brass rod mm 450 450 450 450 450 450
Brass Rod Daimeter mm 45 50 50 50 50 50
Weld Material type grade M.s, S.s, G.i, C.r.c, Brass Etc., M.s, S.s, G.i, C.r.c, Brass Etc., M.s, S.s, G.i, C.r.c, Brass Etc., M.s, S.s, G.i, C.r.c, Brass Etc., M.s, S.s, G.i, C.r.c, Brass Etc., M.s, S.s, G.i, C.r.c, Brass Etc.,
Copper anode mm*inch 19mm * 10inch 22 mm * 10 inch 22 mm * 10 inch 22 mm * 10 inch 25 mm * 10 inch 25 mm * 10 inch
Suitable For Welding Rod mm 5 + 5 6 + 6 6.8 + 6.8 8 + 8 8.5 + 8.5 10 + 10
Suitable For Welding Sheet mm 2.6 + 2.6 3.25 + 3.25 3.5 + 3.5 4 + 4 4.8 + 4.8 4.8 + 4.8
Suitable For Welding Sheet swg 14 gauge 10 gauge 8 gauge 8 gauge 6 gauge 6 gauge
Max. available short circuit currents KA 8 9 12 20 24 28
Insulation Class: F F F F F F
Nominal Electrode Force – Approximate Kgc 1 – 2 1 – 3 1 – 4 2 – 5 2 – 5 2 – 5
Electrode Stroke Max. mm 40 40 40 50 50 50
Cooling for Transformer / Arms Electrode Water Water Water Water Water Water
Automation Grade Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Water at max. temperature of 30°C (Liters/min.) Liters/min 3 3.5 3.5 4 4 5
